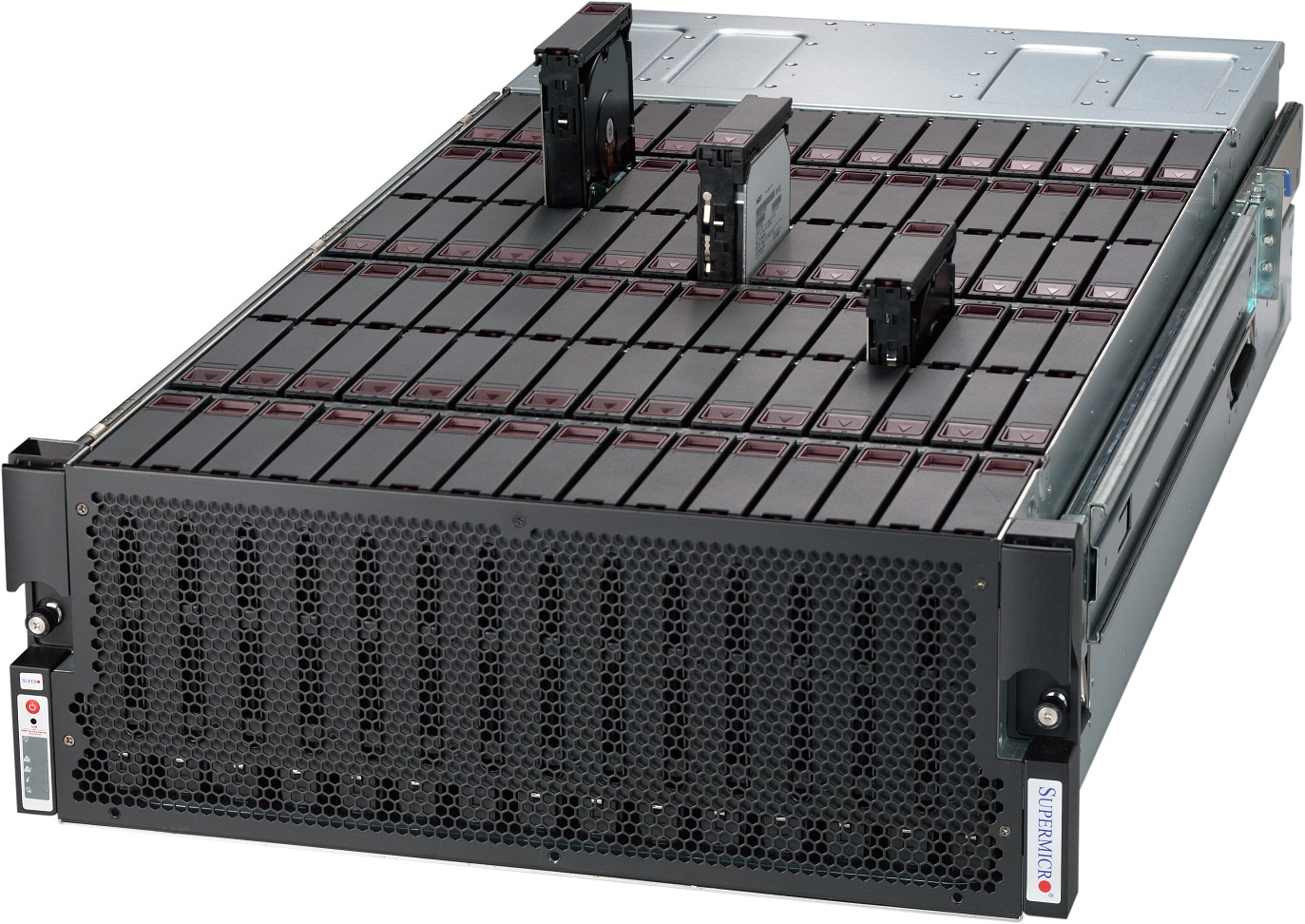

- Extreme High Density and High Capacity Dual-path Storage Enclosure
- Support 90 x 3.5” or 2.5” Top Loading SAS3 12Gb/s Hot-swappable HDDs
- Hot-swappable Expanders with redundant BMC for Remote System Power on/off and monitoring
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- High Performance up to 20+ GB/s data transfer rate
- Tool-less HDD tray with HDD LED indicator
- SCSI Enclosure Services (SES 3.0) compliant
- Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
- Slide Rails and Cable Management Arm included
- Support 90 x 3.5” or 2.5” Top Loading SAS3 12Gb/s Hot-swappable HDDs
- Hot-swappable Expanders with redundant BMC for Remote System Power on/off and monitoring
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- High Performance up to 20+ GB/s data transfer rate
- Tool-less HDD tray with HDD LED indicator
- SCSI Enclosure Services (SES 3.0) compliant
- Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
- Slide Rails and Cable Management Arm included
Rack capacity | 4U, |
---|---|
Product colour | Black, |
LED indicators | Network,Power fail, |
Rack mounting | Y, |
Built-in speaker(s) | N, |
Number of 3.5" bays | 90, |
Operating temperature (T-T) | 5 - 35 °C, |
Storage temperature (T-T) | -40 - 60 °C, |
Operating relative humidity (H-H) | 8 - 90%, |
Storage relative humidity (H-H) | 5 - 95%, |
Width | 447 mm, |
Depth | 906 mm, |
Height | 178 mm, |
Hot-swap | Y, |
Supported HDD sizes | 2.5,3.5", |
HDD/SSD combo cage | Y, |
Rear fans installed | 5x 80 mm, |
Bottom fans installed | 5x 80 mm, |
Power supply | 1000 W, |
Power supply included | Y, |
